Talk-thru communicator is designed for applications where a cutout in the barrier is impractical. The inside (Master) station comes with a gooseneck microphone, volume controls, and an extended gooseneck microphone. This model is recommended for most applications where there isn’t an existing hole in the glass.
FEATURES

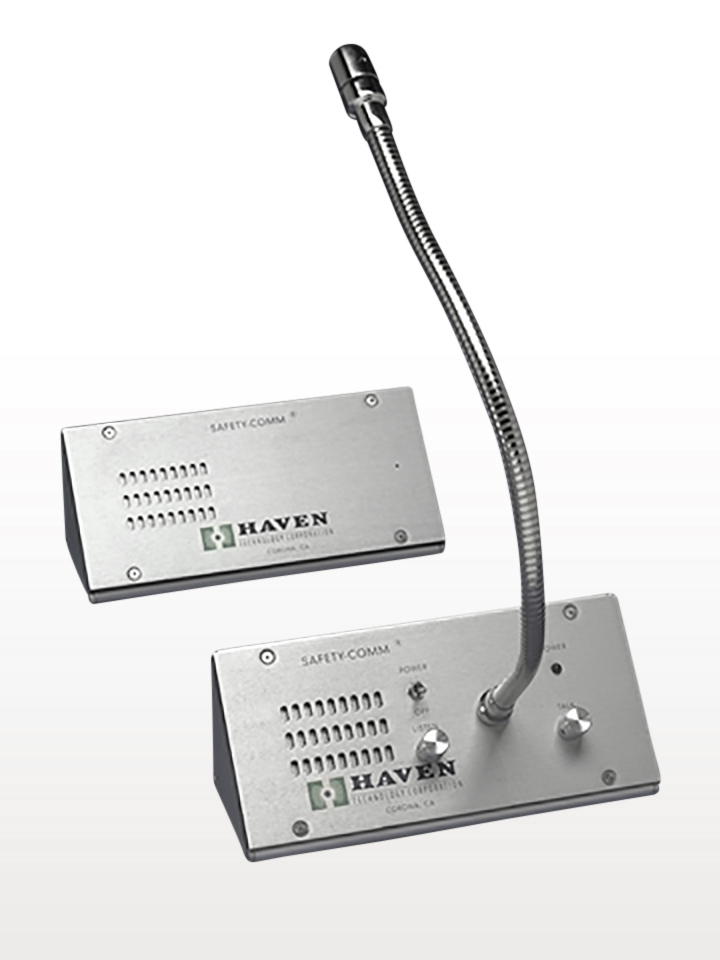

Two-way communication is accomplished through the use of speakers and microphones located on each side of the partition. The master unit is equiped with a 20" gooseneck microphone, power on/off switch, power-on LED, and external volume controls. The Remote unit is vandal-resistant with all controls located within the housing.
- Rugged Aluminum Construction
- Duplex Communication
- Voice Activated Switch
- Background Noise Level
- Monitoring
- Level Detection and Attenuation Control
- Linear Volume Control
- Dimensions: 4"w x 8"h
SPECIFICATIONS
The SC-300 provides electronic two-way, hands-free audio communications (duplex) between a partition.
The SC-300 is equipped with a factory adjusted VOX switch to prevent ambient noise (below 85 decibels) from activating the unit. The SC-300 contains two voice channels, each incorporating a microphone amplifier, VOX switch, compressor, and a power amplifier. The sound amplifier does not exceed a 0.2%
total harmonic distortion rating.
The SC-300 is fully operational between 0°C and 50°C.
Each order comes with an AC/DC power supply (120V AC stepped down to filtered 12V DC) and a 1-year warranty.
APPLICATIONS
Movie Theaters, Ticket Booths, Sport Arenas, etc.
OPTIONS
SC300 Headset in lieu of gooseneck microphone and/or AA battery pack for 18-24 hours of rechargeable duty
time based on 25% talk-time.
| Drawing 6201 | Installation diagram MODEL #: SC-300 Standard Model |
| Drawing 6566 | Installation diagram MODEL #: SC-300HG Combination gooseneck microphone and headset jack. |
| Drawing 6591 | Installation diagram MODEL #: SC-300MHS With wireless headset option |
| Drawing 6677 | Installation diagram MODEL #: SC-300-TH1X With telephone handset |
